Mingardi Linea D8 2700934 – The proven electric linear actuator with 230V
The Mingardi D8 linear actuator is the ideal complete solution for demanding applications in building automation and industry. With a fixed stroke length of 200 mm, a robust thrust force of 500 N, and an advance speed of 12 mm per second, it combines precise performance with reliability. Fitted with limit switches and a relay for parallel electrical connection, while the thermal protection and silver-anodized finish ensure long-lasting durability. Supplied with mounting hardware, the D8 is the perfect choice for retrofit installations or new applications in automation systems.
Features and Highlights of the Mingardi Actuator
-
Superior Precision & Speed:
The Mingardi D8 impresses with its precise control, powerful 500 N thrust force, and an advance speed of 12 mm/s. -
Robust & Durable:
The silver-anodized finish and integrated thermal protection ensure long-lasting performance even under demanding conditions. -
Intelligent Integration:
Featuring built-in limit switch contacts, an integrated relay, and a pre-assembled 6-core cable, the actuator integrates seamlessly and securely into existing systems. -
Cost-effective & Low Maintenance:
The maintenance-free stroke mechanism and optimized design result in minimal operating costs and high efficiency in use. -
Flexible & Complete:
Including a sliding mounting console, the D8 offers an all-around solution for a variety of applications in building automation and industry. -
Proven Mingardi Quality & Reliable Service:
Rely on Mingardi quality and our experienced DRFA sales team for a reliable and long-term solution. Benefit from innovative solutions and a strong partner.
Order now!
Technical Specifications
| Operating Voltage: | 230 V AC (50 Hz) |
| Stroke Length: | 200 mm (fixed) |
| Force: | 500 N |
| Speed: | approx. 12 mm per second |
| Color: | Silver anodized |
| Limit Control: | Two wires are provided to signal open/closed status with potential (On/Off). |
| Relay Integrated: | Equipped with limit switches and a relay for parallel electrical connection. |
| Cable: | 1.2 m cable, 6-core for power supply and signal outputs |
| Protection Rating: | IP 55 (suitable for indoor use) |
| Thermal Protection: | Built-in thermal overload protection device |
| Temperature: | -10°C to +60°C |
| Article Number: | 2700934 |

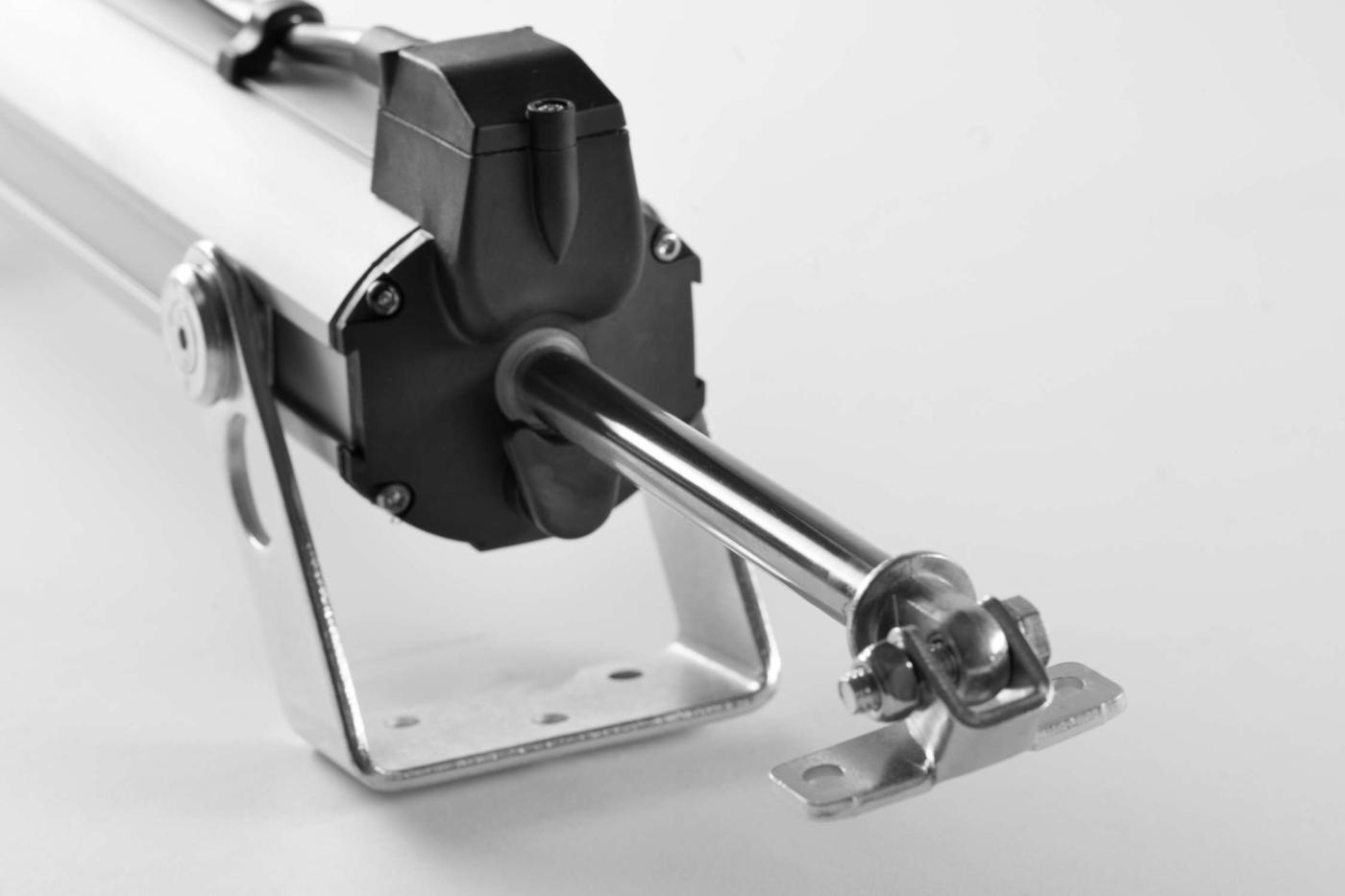

Installation with the Sliding Mounting Console 2713836
- Secure Mounting: The console kit enables a robust and reliable mounting of the Mingardi D8 actuator.
- Easy Positioning: The sliding console allows you to position the compact actuator exactly where needed. Thanks to the integrated guides, the console can be adjusted during installation for optimal alignment.
- Optional: 2700102 Front Pin for sun protection applications.
Applications – Versatile Use
The Mingardi D8 is the ideal solution for a wide range of automation requirements, offering reliable performance in numerous areas:
- Building Automation: Perfect for automated window ventilation in smart building concepts.
- Industrial & Commercial Buildings: Efficient control of windows, ventilation flaps, skylights, and sun protection systems.
- Modern Facade Technology: Optimizes natural ventilation and contributes to energy savings.
- Public Facilities & Halls: Enhances comfort and safety in schools, office buildings, shopping centers, and production facilities.
- Custom Special Applications: Wherever a powerful, durable, and precise linear stroke is required.
Scope of Delivery
- Mingardi D8 actuator (Voltage: 230 V AC)
- Sliding mounting console 2713836
- Documentation with connection and installation instructions
Contact
Do you have any questions or need individual consultation? Our expert team is available to assist you.
Bulk Discounts: Attractive pricing advantages are available when ordering larger quantities.
Personalized Consultation & Service: For special requirements or custom projects, our expert team is at your disposal.
Rely on the proven Linea Mingardi D8 2700934 230V! A powerful, reliable, and easy-to-install actuator that integrates perfectly into modern building and industrial applications.
- D8_Product_Description_Mingardi_linear_drive.pdf (844.43 KB) :
- The instruction manual is included with the actuator.
