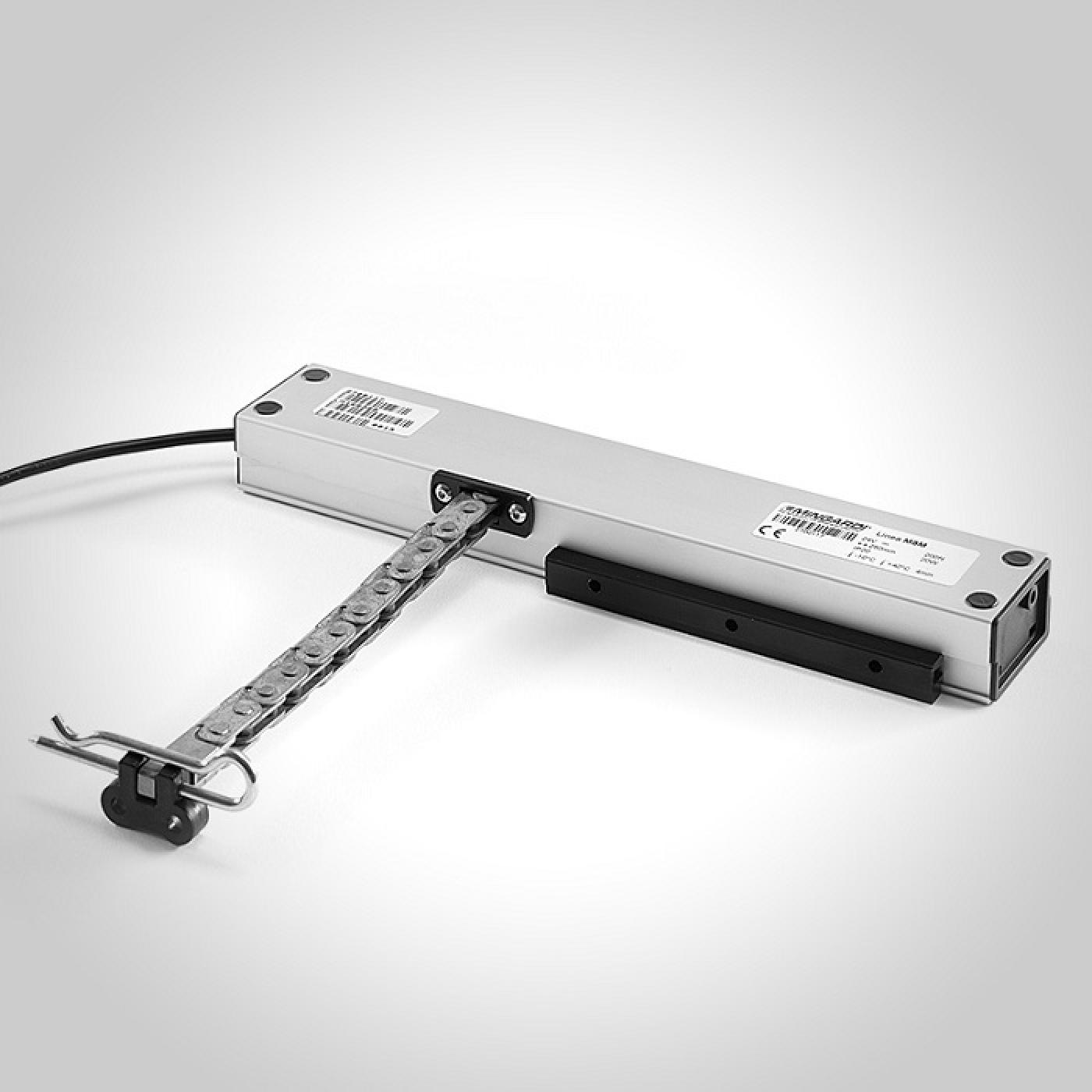

MINGARDI MICRO S - 230V AC, stroke 250 mm, 200N, white, standard
MINGARDI MICRO S - 230V AC, stroke 250 mm, 200N, white, standard
MINGARDI Micro S / 230V AC, stroke 250 mm, 200N, White

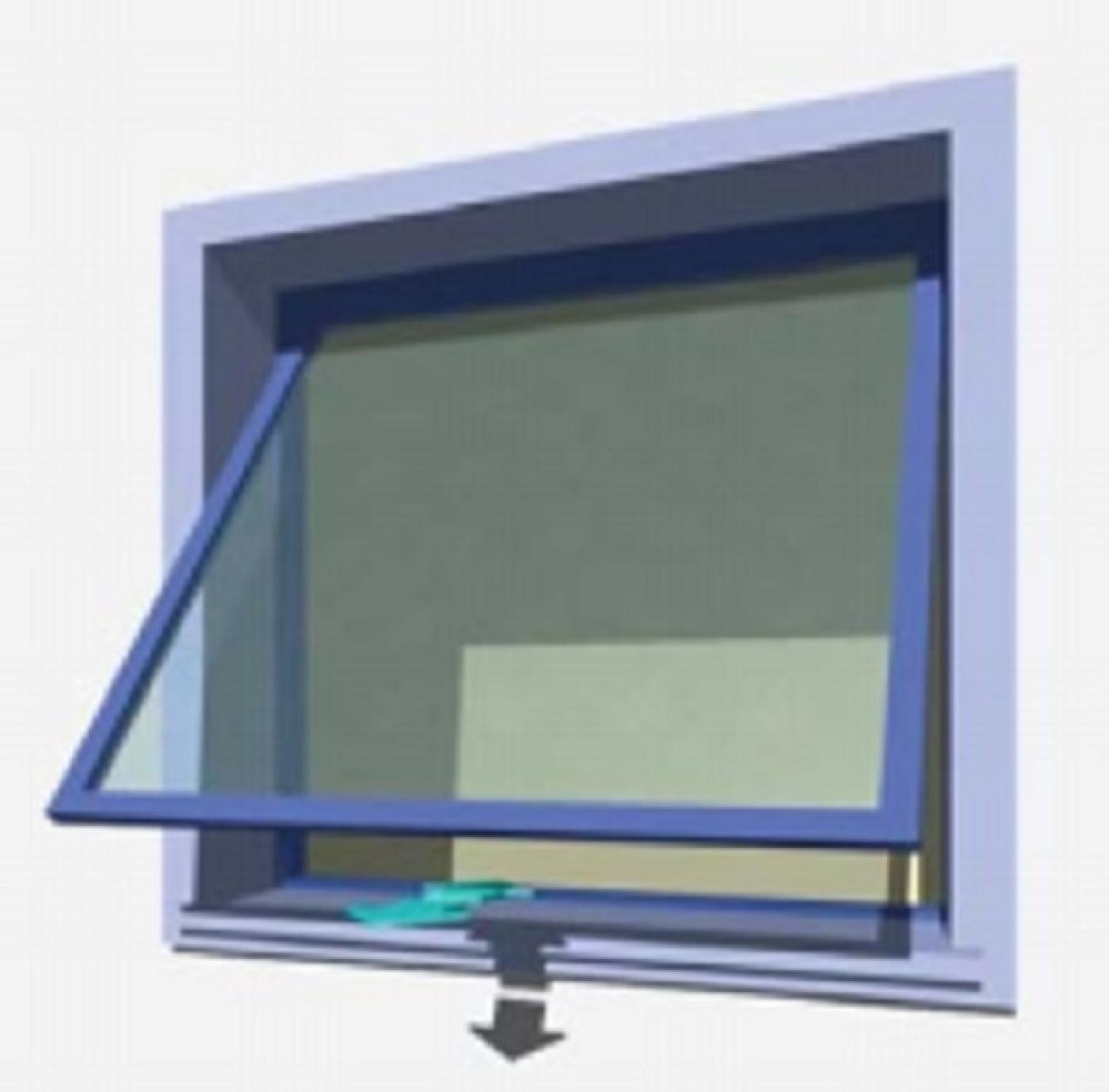

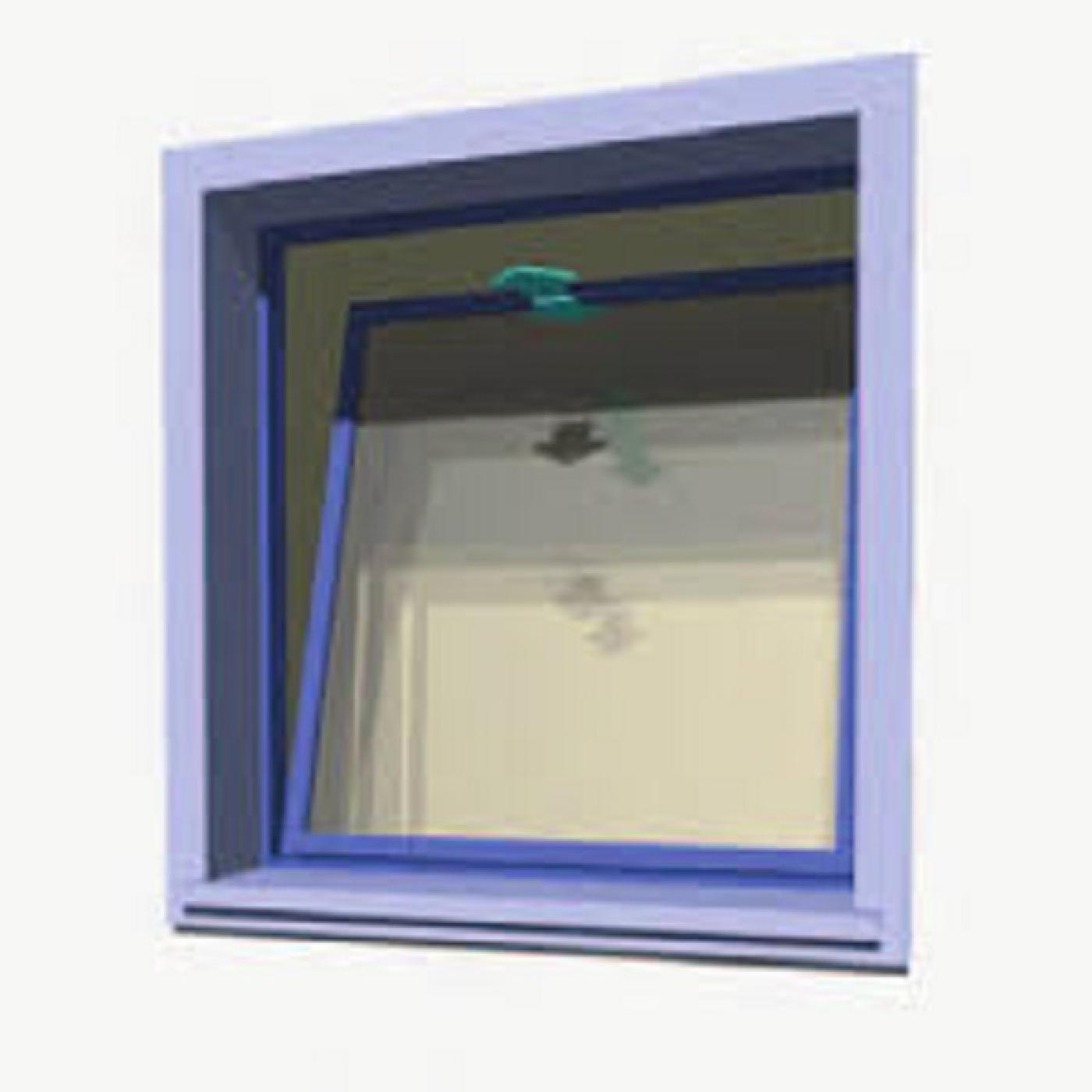

Compact chain drive for: Top-hung and bottom-hung windows
- Voltage 230V AC
- Stroke length adjustable up to 250 mm with magnetic disk
- Force pull: 200 N, thrust: 200 N
- Feed 10 mm / sec
- Color white
- Variant Standard version
The technical description is available for download under TAB Documents.
For product variants, please refer to our store.
DRFG "Die Referenz für Gebäudetechnik GmbH", is the official Mingardi representative for the whole
the entire German-speaking area.
-
Micro S_Product description
(232.71 KB)
:
-
Manufacturer information
Nekos srl (Mingardi)
36064 Colceresa Via Capitoni, 7/5
Vicenza
E-Mail: info@nekos.it
