Mingardi Micro Evo 2 chain actuator – 24 V / 230 V (RWA/SHEV)
Micro Evo 2 electric chain actuator for indoor installation with integrated overload cutoff, automatic end-position detection, and soft stop during closing travel.
Mingardi Micro Evo 2 – Key Features
- 110– 240 V AC / 24 V DC
- Stroke length 150 – 600 mm
- Rated force up to 400 N
- approx. 15 mm/s
- IP32-rated
- 24 V DC (RWA/SHEV)
- Integrated overload cutoff & automatic end-position detection
- The actuator includes integrated overload cutoff (current monitoring) and automatically detects the end position to protect the motor and frame.
- Synchronized operation for up to four actuators
- A synchronization system coordinates up to four actuators without an external controller.

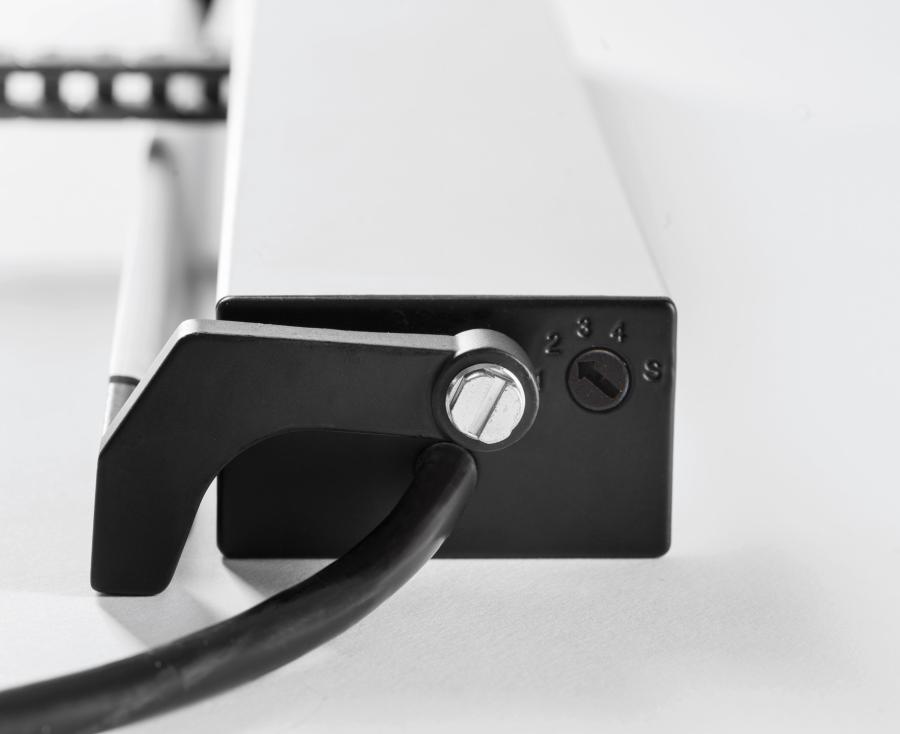

- Electronically selectable stroke lengths
- Four stroke length options (150 mm, 300 mm, 450 mm, 600 mm) can be set via an external selector.
- Soft stop
- Soft stop protects seals and mechanics from wear.
- Rugged design
- Aluminum housing with guided chain and a corrosion-protected surface.
- Standards-compliant safety
- 24 V version tested for RWA/SHEV.
Technical Data
| Supply voltage | 110 – 240 V AC (50–60 Hz) / 24 V DC |
| Power consumption | 30 W / 28 W |
| Selectable stroke lengths | 150 mm, 300 mm, 450 mm, 600 mm |
| Rated force (thrust) | 400 N (150 mm, 300 mm), 350 N (450 mm), 300 N (600 mm) |
| Rated pull force | 400 N |
| Max speed | approx. 15 mm/s |
| IP rating | IP32 (indoor installation) |
| Ambient temperature range | −10 °C to +60 °C |
| Dimensions (L × H × W) | 450 mm × 42 mm × 75 mm |
Applications
The Mingardi Micro Evo 2 is suitable for various opening types such as outward-opening top-hinged skylights, top-hinged, side-hinged (casement), bottom-hinged (tilt), and pivot windows, as well as skylight domes. The wide supply voltage range and selectable stroke lengths make it ideal for smoke and heat exhaust ventilation (RWA/SHEV) systems and for building ventilation.
Brackets and Installation
A pivoting metal bracket is included and enables secure mounting of the actuator to the profile. Separate window brackets are available for different window types. Order these additionally based on the window type.
| Part number | Description | Finish |
|---|---|---|
| 2701010 | Window bracket for outward-opening (top-hinged) windows | black |
| 2701017 | Window bracket for outward-opening (top-hinged) windows | white |
| 2713820 | Window bracket for bottom-hinged (tilt) windows | white |
| 2713821 | Window bracket for bottom-hinged (tilt) windows | black |
| 2701069 | Pivoting motor support bracket (included in scope of delivery) | silver |
Wiring
The table below shows the color assignment of the connection leads. Cable length is 1.5 m each; PVC for the AC version and silicone for the DC version.
| Color | 110 – 240 V AC | 24 V DC |
|---|---|---|
| Blue | Common | Voltage |
| Black | Closes | – |
| Brown | Opens | Voltage |
| White | Sync | Sync |
| Red | Sync | Sync |
Scope of Delivery and Ordering Codes
The scope of delivery includes the Micro Evo 2 actuator, the pivoting bracket, and mounting screws. The actuator is available only in silver; other colors are available on request.
| Order code | Description | Finish | Cable |
|---|---|---|---|
| 2701059 | Micro Evo 2 110 – 240 V AC | Anodized silver, black pivoting motor support bracket | PVC, 5×0.75 mm² |
| 2701058 | Micro Evo 2 24 V DC – RWA | Anodized silver, black pivoting motor support bracket | Silicone, 4×1 mm² |
Notes
- For indoor installation only (IP32-rated).
- Ambient temperature range −10 °C to +60 °C.
- 24 V version tested for RWA/SHEV.
- Harmonized with applicable European directives and CE-marked.
- Additional colors (black, white) available on request.
- Micro_EV02_Datasheet (1.76 MB) :
-
Manufacturer information
Nekos srl (Mingardi)
36064 Colceresa Via Capitoni, 7/5
Vicenza
E-Mail: info@nekos.it
