NTS1 electric spindle actuator (linear actuator) — Electric drive technology from Germany with 12 V, 24 V, and 230 V

Name: NTS1 electric spindle actuator (linear actuator) — Electric drive technology from Germany with 12 V, 24 V, and 230 V
Brand: DRFA
SKU: NTS1

Shipping time:
Unkown shippingtime

Variant: Reset configuration

Voltage:

from 264,18 EUR

incl. 19% tax

pcs.:

Specification

Electric spindle actuator NTS1

Quality made in Germany

Reliable German-made quality you can trust

Benefit from maximum reliability, short delivery times, and direct technical support thanks to local manufacturing.

Flexibly configurable

Voltage, force, stroke and speed: all tailored to your needs

Talk to us about your requirements. The NTS1 electric spindle actuator is tailored exactly to your individual specifications. Contact us now without obligation.

Powerful and fast

Maximum force, high speed

A powerful motor with forces up to 1500 N or speeds up to 37 mm/s tackles your tasks. The NTS1 moves loads precisely, quickly and reliably. It is available in 230 V, 24 V and 12 V versions.

Automatic load cut-off

Protection for actuator and system

The integrated load cut-off reliably protects the actuator. It prevents costly consequential damage and increases the energy efficiency of the NTS1.

Continuously adjustable stroke

Set stroke length to measure: maximum application versatility

Simple, stepless adjustment of the stroke length enables precise solutions for each of your applications. The NTS1 spindle actuator offers maximum flexibility in practice.

Signal contacts and synchronous version

Matching control integrated

Synchronous operation prevents asynchrony between two actuators, and dry signal contacts provide precise status messages at the end positions. Available as an option for all versions.

Fast installation

Reduced installation time thanks to the supplied mounting parts

The included T-slot nuts and U bracket allow secure and flexible mounting. The NTS1 is quickly ready for operation.

Easy system integration

Ready for immediate use, integration without detours

We supply the NTS1 individually tailored to your requirements. Save valuable time through immediate integration without elaborate on-site adjustments.

NTS1: Available in 230 V, 24 V and 12 V

Technical data of the NTS1 spindle actuator

Technical data sheet (PDF) Quick start guide (PDF) Operating instructions (PDF) 3D CAD files (STEP) Specification texts

Voltage	12 / 24 V DC ± 20 %, max. 1.2 A 230 V AC ± 20 %, max. 0.2 A
Force	200 – 1500 N
Stroke length	100 – 600 mm
Options	Dry signal contacts, synchronous version
Housing	Aluminum profile, EV1 anodized – width 44 mm × height 71.4 mm × length (stroke length + 180 mm)
Weight	approx. 2 kg
Speed	max. 3 mm/s to 37 mm/s (variant‑dependent)
Static holding force	2000 N
Duty cycle	50 %
Limit shut-off	OPEN/CLOSE, no re‑run microswitches
Load cut-off	Integrated, protects actuator and system
Temperature range	–20 °C to +60 °C
Certifications	IP55, CE, RoHS compliant

Electrical specifications

Voltage option	Current draw	Typical application
12 V DC ± 20 %	max. 1.2 A	Mobile/off‑grid applications, solar and battery operation
24 V DC ± 20 %	max. 1.2 A	Mechanical engineering, industrial systems
230 V AC ± 20 %	max. 0.2 A	Building automation, direct mains connection

Configuration tip: voltage

For smooth commissioning we recommend sizing your power supply to the maximum current consumption. We will gladly configure your actuator at the factory with the appropriate cable length and connectors. A 1‑m connection cable is included as standard. The quick start guide explains the cable wiring. The actuator features an integrated load cut‑off that automatically stops the actuator when current consumption increases.

Optional voltage modifications

Individual cable lengths (e.g., 2 m or 5 m)
Selectable cable material (e.g., halogen‑free)
Connector types on request (e.g., WAGO, extended stripping)
Flexible cable exit (e.g., front, rear or side)
Further voltages on request (e.g., 48 V DC)

Typical models:

Model designation	Configuration (voltage / force / stroke)
NTS1-0300-230-000	230 V 600 N 300 mm
NTS1-0500-230-000	230 V 600 N 500 mm
NTS1-0100-024-000	24 V 600 N 100 mm
NTS1-0300-024-000	24 V 600 N 300 mm
NTS1-0500-024-000	24 V 600 N 500 mm

Performance data: force and speed

12 V 24 V 230 V

**NTS1 – technical data at 12 V**
Force	Max. speed	Note
450 N	5 mm/s
600 N	13 mm/s	On request
1500 N	3 mm/s	On request

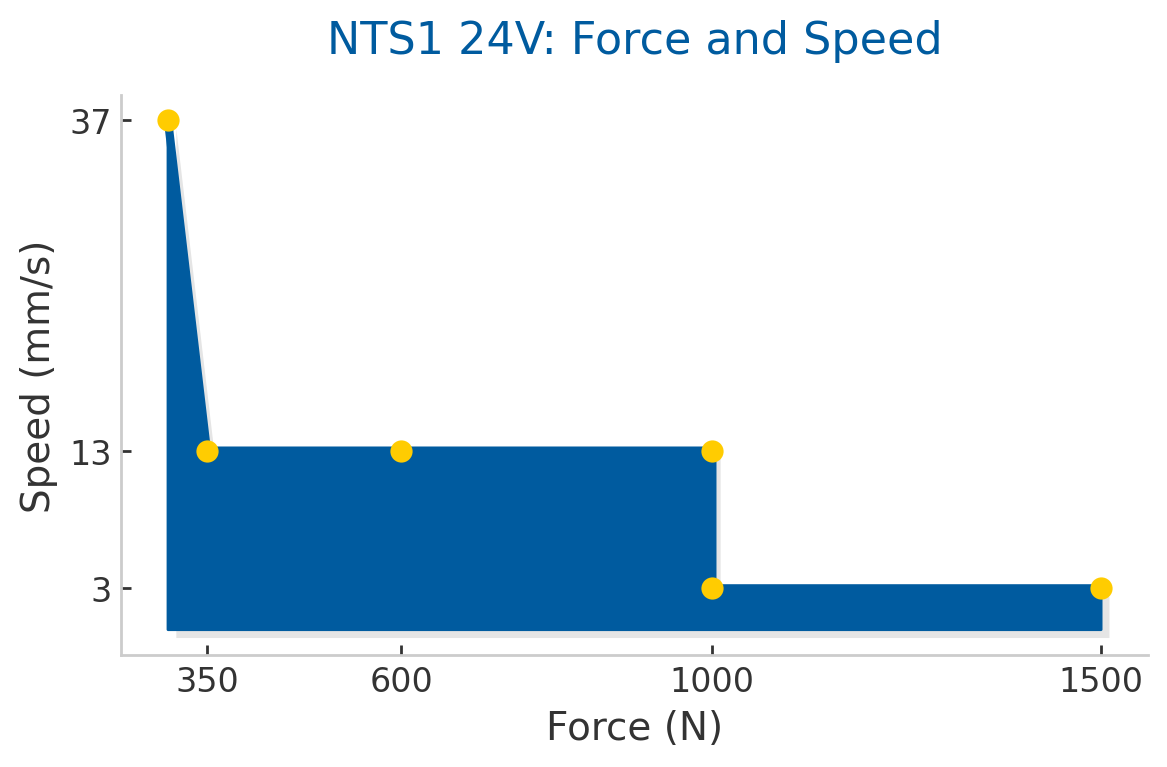

**NTS1 – technical data at 24 V**
Force	Max. speed	Note
1500 N	3 mm/s	Long stroke on request
1000 N	3 mm/s	Long stroke on request
1000 N	13 mm/s	Long stroke on request
600 N	13 mm/s
350 N	13 mm/s
300 N	37 mm/s

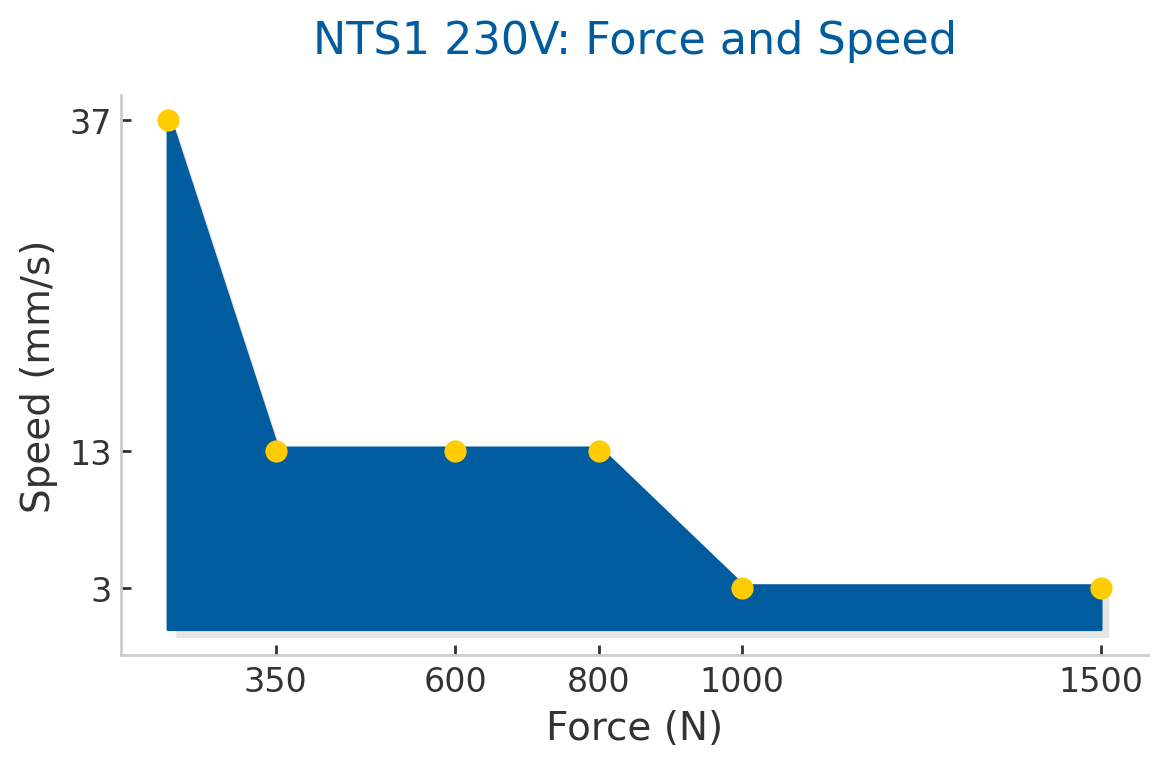

**NTS1 – technical data at 230 V**
Force	Max. speed	Note
1500 N	3 mm/s	Long stroke on request
1000 N	3 mm/s	Long stroke on request
800 N	13 mm/s	Long stroke on request
600 N	13 mm/s
350 N	13 mm/s
200 N	37 mm/s

Further versions available on request.

Configuration tip: force

In the standard version the NTS1 spindle actuator has 600 N of force and a maximum speed of 13 mm/s. Select your force and speed combination to suit the application: with 600 N you can reliably move loads up to 60 kg. In hinge‑ or guide‑supported applications the design carries part of the load, reducing the required drive force.

Which force is required?

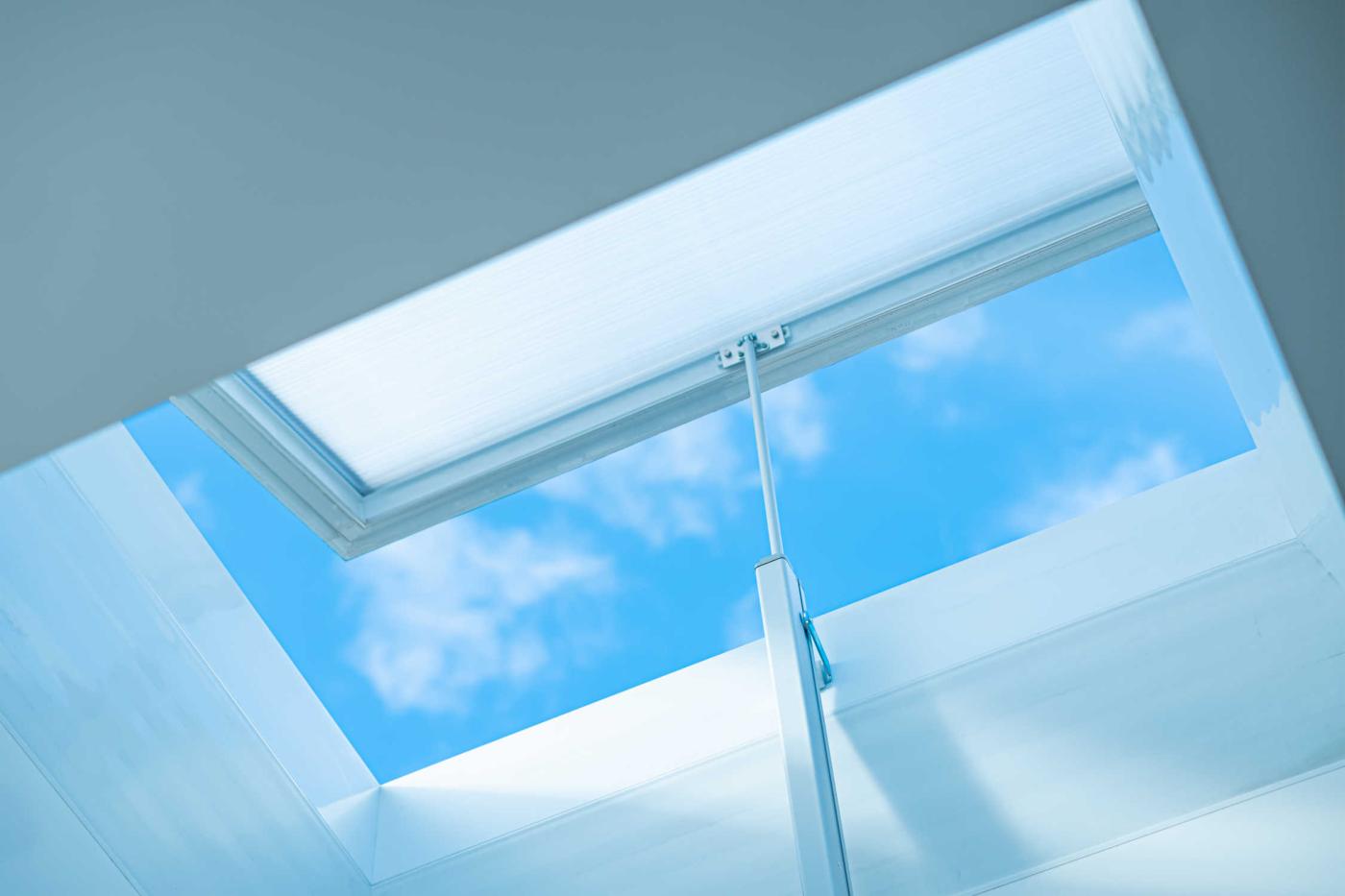

Below 600 N – sensitive applications such as windows or hatches
Up to 600 N – medium tasks such as skylights or ventilation openings
Above 600 N – heavy tasks such as machine covers or large gates

Configuration tip: speed

The speed indicates how quickly the spindle actuator travels its stroke length (mm/s).

Slow: precise control, gentle movements, higher loads
Fast: short cycle times, high response requirements

Calculate movement time

Formula: speed = stroke length / time
Example: 200 mm / 20 s = 10 mm/s

Note that higher speed often means lower force. Always consider stroke, load and speed together.

Available stroke lengths

The NTS1 is available in seven pre‑configured stroke lengths. Each actuator can be continuously adjusted to the desired stroke length. Intermediate and special stroke lengths are possible for custom solutions.

Configuration tip: stroke length

The stroke length defines how far the actuator extends and retracts.

Determine how much travel the actuator needs in your application.
The end position can be continuously adjusted on every NTS1 actuator (see instructions page 4). Shut‑off is via precise microswitches.
If blocked, the integrated load cut‑off protects the actuator and the application.
As the stroke length increases, the total length of the actuator increases.

Dimensions of the actuator:
width 44 mm | height 71.4 mm | length 180 mm + stroke length.
Example: with a 300 mm stroke length the total length is 480 mm.

Optional stroke length modifications

Factory setting of stroke limit as specified
Special stroke lengths, e.g., 120 mm, to achieve a shorter installation length
Short‑stroke versions under 100 mm for compact installation spaces
Long‑stroke versions above 600 mm (depending on force/application)

Available stroke lengths of the NTS1 in mm

Stroke length continuously adjustable 0 – 100 mm

Synchronous version and signal contacts

In many applications electric actuators have to be integrated into control systems. This is the case, for example, with synchronously operated flaps, safety‑related functions or automated processes.
Problem: integration often requires additional control units.
Solution: with the NTS1, synchronous operation and signal contacts can be integrated directly. This significantly reduces programming, installation and coordination effort.

Application of dry signal contacts

Dry signal contacts reliably monitor the end positions of the actuator and report its status directly to the building or machine control.

Safety monitoring: immediate notification if, for example, a window is accidentally open increases protection against break‑in or weather damage.
Automation: automatically starts ventilation as soon as the actuator is extended.
Process reliability: a clear status message (OPEN/CLOSE) ensures that, for example, extraction flaps are only active when open.

Application of the synchronous version

The synchronous version ensures exact synchronous operation of two identical NTS1 actuators.

Even force distribution: prevents damage due to uneven loads.
Increased operational safety: if one actuator triggers the load cut‑off, the second one switches off automatically to prevent mechanical damage.
Durability: active protection against asynchrony increases the service life of the whole system and reduces maintenance effort.

Optional control modifications

Custom control adaptation
Individual cable length
Combination of synchronous version and signal contacts possible

Individual solutions and customizations

To the company profile →

Request a quotation →

DRFA – Drive technology from Germany

Thousands of NTS1 spindle actuators are already in use. They prove their reliability every day in industrial series applications, individual customer projects and building automation.

Unpack. Install. Operate.

We develop and manufacture actuators tailored to your application. Send us your requirements!

Direct from the manufacturer

Personal contact person
High delivery capability thanks to in‑house manufacturing
Made in Germany production
Short response times for special requests
Ideal for retrofitting existing installations

Installation of the NTS1 spindle actuator

Installation instructions and accessories

The NTS1 is supplied with a U bracket as standard. Thanks to a well‑designed overall concept, installation time is significantly reduced. Installation is straightforward and is described in detail in the operating instructions. Please follow the instructions in the manual to install the actuator correctly. Installation must be performed only by qualified personnel.

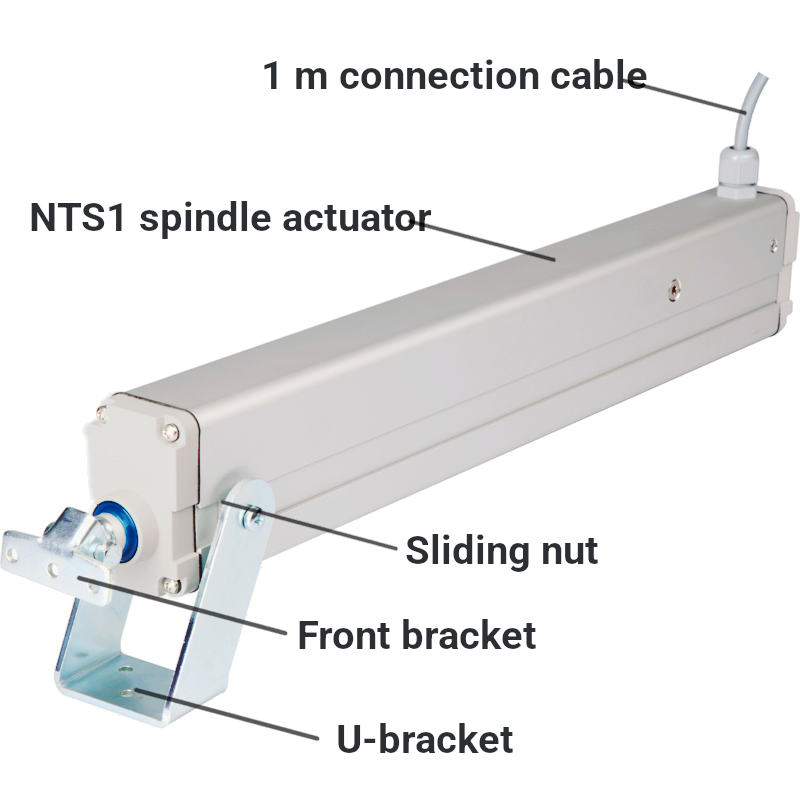

Scope of delivery

NTS1 spindle actuator with connection cable (1 m)
U bracket with 2 T‑slot nuts and 2 Phillips screws
Clevis bracket with M5 screw and self‑locking nut
Integrated control in the actuator

Mount the NTS1 quickly and safely

Screw on the U bracket.
Insert two T‑slot nuts into the actuator’s dovetail groove and attach the actuator to the U bracket.
Attach the load to the push tube, e.g., with the supplied clevis bracket.
Make the connection via open leads (DC or AC, depending on the version).
Run the actuator several times, test the limit shut‑off and adjust the stroke length continuously if necessary.

The supplied U bracket ensures secure mounting and allows flexible movement in dynamic applications. An M6 eye bolt is preassembled on the push tube at the factory. This can be adjusted or replaced with customer‑specific accessories if necessary. Thanks to the well‑designed construction and proven components, installation is quick and reliable.

Electrical connection (12 V, 24 V, 230 V) and load cut‑off

Continuously adjustable stroke in five steps

In five steps you adjust the NTS1 stroke length precisely for your application. The detailed description can be found in the operating instructions on page 4.

Unscrew the cover cap
Fully extend the push tube
Secure the adjusting ring twice
Set the desired stroke length
Screw the cover cap back on

Load cut‑off

The integrated load cut‑off continuously monitors drive current. If current consumption exceeds the permissible limit, the NTS1 switches off and thus protects the motor, gearbox and connected components.

Dry signal contacts

Optional signal contacts reliably report the end positions of the actuator to higher‑level controllers (max. 250 V / 1 A). You thus get precise feedback, for example, for safety‑relevant releases, status indications or to control automated processes.

Once the actuator reaches the respective end position, the associated dry contact closes. The two leads per end position are connected directly to the appropriate input of your controller.

Voltage	Color OPEN contact	Color CLOSE contact
230 V AC	Blue / violet	Red / white
24 V DC	Gray / violet	Red / white

Note: The contacts are not switched during a load cut‑off or if no supply voltage is present at the actuator.

Connecting the synchronous version

With the optional synchronous version, two NTS1 spindle actuators can be operated in parallel. Simply connect the two actuators via the pink and orange control leads. The integrated control ensures that both electric actuators travel precisely and evenly.

Ideal for applications where particularly large flaps, skylights or windows need to be moved. Higher forces can also be mobilized than a single actuator can provide. Synchronous operation enables a reliable, precise and space‑saving solution without any external controller.

NTS1 spindle actuator electrical connection diagram 24 V DC with colour legend — Connection diagram NTS1 spindle actuator **24 V DC and 12 V DC**

NTS1 spindle actuator electrical connection diagram 230 V AC with colour legend — Connection diagram NTS1 spindle actuator **230 V AC**

Replacement solutions for Mingardi actuators

The NTS1 spindle actuator is excellently suited as a replacement for common Mingardi actuators. With a suitable adapter bracket and matching accessories, existing systems can be retrofitted quickly and easily. Many older Mingardi actuators were supplied as special versions. Thanks to its flexible configuration options, the NTS1 can also be adapted and used easily in these cases.
Easily and reliably replace old Mingardi actuators with the NTS1. Reduce maintenance effort and operating costs through modern electric technology!

Compatible Mingardi series

Euro1
D series (D4, D6, D7, D8, D16, D20, D31)
System 0/1

Your benefits when replacing with the NTS1

Adapter sets for existing brackets
Customized brackets with the same hole pattern
Cable length configurable according to specification
Optional integrated signal contacts

Compatibility list →

Overview of alternatives for Mingardi actuators

Mingardi model	NTS1 part number	Option
Euro1 450 N	NTS1-0300-230-000	Select stroke/voltage depending on model
Euro1 1000 N	NTS1-0300-230-100	Select stroke/voltage depending on model
D4	NTS1-0200-230-400	Choose and set stroke depending on model
D20	NTS1-0300-230-000	Choose and set stroke depending on model
D31	NTS1-0300-230-220	Two NTS1 actuators in synchronous version

The stroke can be adjusted steplessly. An exact solution must always be checked on a case‑by‑case basis.

Tailor‑made installation options

Unpack. Install. Operate.

With the NTS1 you save time, effort and costs: the actuator is optionally matched exactly to your installation situation at the factory so that you can install it immediately after unpacking. On request we adjust cable length, mounting technology and interfaces to your requirements.

All options that assist with installation at a glance:

Brackets and mounting
- Adapter sets for existing brackets
- Custom bracket manufacturing
- Eye‑to‑eye mounting
- Project‑specific mounting aids
Cables and connection
- Flexible cable length and routing
- Selectable cable exits
- Various connector types
- Extended protection options (IP)
Packaging and delivery
- Custom packaging
- Preassembled components
- Express delivery
- Partial deliveries
Integration and support
- Integration into bus systems
- Technical support
- Factory stroke adjustment
- Adaptation to customer control

Item numbers

Documents

NTS1 Datasheet DRFA (174 KB)

NTS1 short Manual DRFA (122.66 KB)

Betriebs- und Montageanleitung NTS1 DRFA (654.49 KB)

Spindle actuator NTS1 3D CAD drawings STEP file (2.67 MB) :: Manufacturer information:
Die Referenz für Antriebstechnik GmbH (DRFA)
D-79539 Lörrach, Wölblinstrasse 70
E-Mail: info@drfa.de
